Product Specifications

Repeatability

Δ E*≤0.05 (θ 10mm, standard deviation for average value source 20 times measurement of white board)

Measuring Range

0 - 200% reflectance Standard Observers 2°, 10°

Spectral Device

Interference Filter (Bandwidth 14nm)

Optics

0-45°, Double Beam Optical Fiber System

Spectral Range

400nm-700nm

Spectral Interval

Measurement: 20nm, Output: 10nm

Light Source

Halogen Lamp, Approx. 2856°K

Aperture Diameter

θ 10mm (Standard), θ 3mm, θ 2mm

Receiver

Photodiode

Display

128 x 64 Dot Graphic LCD

Power Supply

Ni-Cad (4.8V), 800mAh

Recharge Time

Approximately 1.5 hours

AC Adapter

DC 9V-500mA Center-negative

Battery Status Indicator

Displayed on the LCD

Measurements per Charge

Approximately 1,000 (Internal Testing)

Warm Up Time

None

Measuring Time

Approximately 2 seconds

Operating Temp. Range

41°F ~ 104°F (5°C ~ 40°C)

Illuminant Types

(A, C, D 50, D 65, F2, F6, F7, F8, F10, F11, F12)

Sound Control

Possible

Measurement Averaging

Possible

Data Storage

400 Data

Reference Colors

40 Data (direct key entry or from stored data)

Right or Left Handed View

Possible to adjust the viewing direction of the LCD.

LCD Contrast Adjustment

Installed

Operational Key

6 Seat Keys (Including 3 Function Keys)

Auto Power Off Timer

4 Selections (including disable)

Temperature Sensor

Installed* (Re-calibration message is displayed when temperature shifts.)

Dimensions

212mm(L) x 77mm(D) x 84mm(H)

Weight

Approximately 770g (including battery)

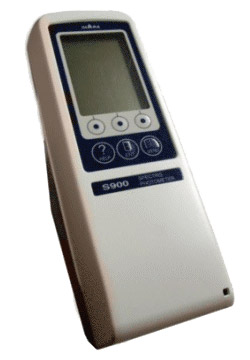

S900
Spectrodensitometer

Measurement Functions/Color Values
Spectral Data (Values/Graphs), XYZ, Yxy, L*a*b*, L*C*h*, L*u*v*, Hunter Lab, Whiteness (3 varieties), YI (2 varieties), MI, Density, Pass/Fail Function, sRGB, Δ XYZ, ΔYxy, ΔL*a*b*, ΔL*C*H*, ΔL*u*v*, ΔHunter Lab, ΔWhiteness (3 varieties), ΔYI (2 varieties), ΔDensity

Densitometer Functions
CMYK Density, Density Difference, Dot Area, Dot Gain, Print Contrast, Ink Trap, Hue Error, Grayness, Saturation, Cast, Brightness, Auto Function, Dot Analysis, Plate Dot Area

Filter Response
ISO:STATUS-T, E, A, I DIN: Wide, Narrow

Color Differences
ΔE*ab, ΔE cmc, ΔE* 94, ΔE* uv, ΔE Hunter, ΔE emc2

Intelligence Function
Infrared Communication, RS-232C output (Possible to transfer the data into MS-Excel worksheets directly, using the optional software .)

Accessories

    Included with purchase:
  • Operation Manual
  • Calibration Board
  • Zero Cap
  • AC Adapter
  • Carrying Case
  • Serial Interface Cable (Optional)
  • Ihara PR-95 Printer (Optional)
  • Software (Optional)
