Product Specifications

Measurement Functions

Density, Dot Area %

Measuring Range

Density: 0.00D - 2.50D Dot Area: 0% - 100%

Repeatability

±0.01D (at < 2.0D, 1%)

Inter-Instrument Agreement

±0.02D (at < 2.0D, 2%)

Optical Design

0/45° (ISO 5/4, ANSI PH2.17, DIN 16536)

Response

Visual (ISO 5/3)

Light Source

Halogen Lens Lamp

Detector

Filter, Built-in Photo Diode

Aperture

3mm (1.7mm available)

Calibration

Calibration using calibration reference.

Display

None

Operational Key

6 sheet keys

Fringe Correction

None

Warm Up Time

None

Operating Temp. Range

41°F ~ 104°F (5°C ~ 40°C)

Sound Control

Supported

Auto Power Off Timer

Interlock with T500

Interface

(9,600bps, 8 data bits, No Parity, 1 Stop bit) Serial Connection Port for T500

Dimensions

Console: 8.3"(L) x 2.8"(W) x 2.0"(H)
(210mm x 72mm x 50mm)

Weight

Approximately 1,300g (including battery)

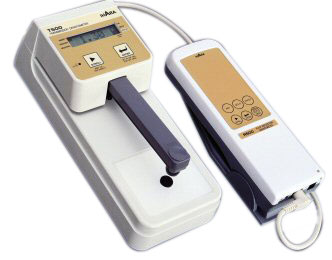

TR500
Black & White Reflection/Transmission Densitometer

Built-In Mini-Light Table Allows for Accurate Positioning

Accessories

  • Operation Manual
  • Calibration Film
  • AC Adapter (9V, 500mA, center-negative)
  • Soft Carrying Case
  • Aperture 3mm (installed), 2mm, 1mm
